The Compact A2105 Digital Hand-Held Tachometer measures RPM of 2 & 4 Stroke Gas / Petrol Engines with a Non-Contact Antenna Sensor or Clip-On Remote Cable Sensor.
The Compact A2105 is ideal for testing most types of single and multi-cylinder petrol & gas engines with electric and electronic ignition systems, designed for hand-held testing and hands free bench testing of engines, chain saws, disc cutters, horticultural and Forestry machinery, pumps, compressors and similar engine driven equipment.
Automatic Measurement - Auto switch off
The units operate continuously once powered on, measurement will be automatic while speed pulses are being received from the Transducer, after approximately 5 minutes of inactivity the instrument switches off.
This unique feature allows the Tachometers to be used through 180 degrees rotation, providing easy readability in difficult applications.
Maximum revs capture mode
Allows the user to take single shot peak speed checks on machines with automatic overspeed governors and centrifugal clutch checking, the actual maximum speed is held in the display.

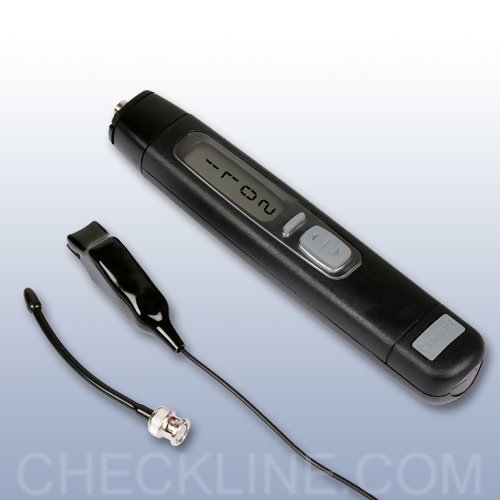

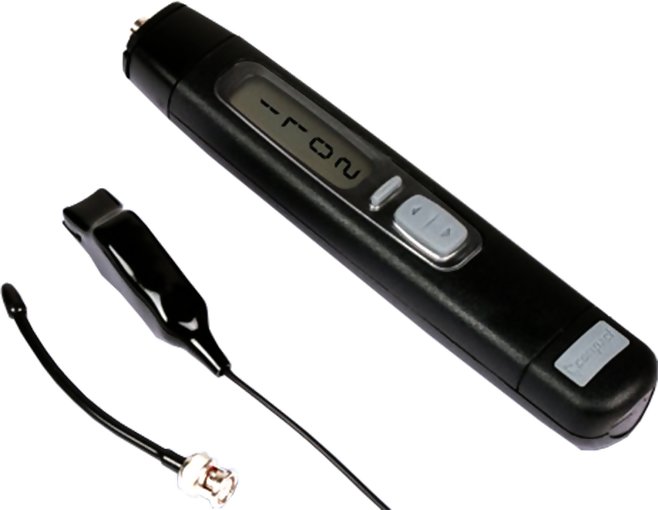

- Supplied with a Non-Contact Antenna Sensor & Clip-On Cable Sensor
- Measures RPM on 2 & 4 Stroke Gas / Petrol Engines
- Works with Single & Multicylinder Gas Engines
- Includes Certificate of calibration
- Reversible display
- Real-Time or Peak RPM Display

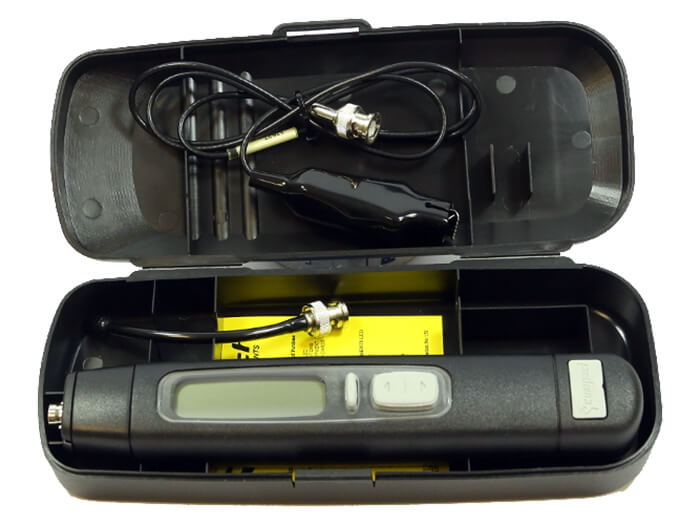

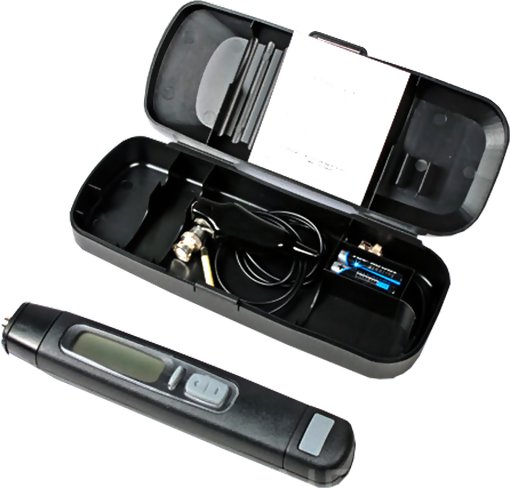

The A2105 comes supplied in a custom carrying case with AAA Batteries, Instruction Manual, Calibration certificate, Non-Contact Antenna Sensor & Clip-On Cable Sensor
|Speed range||60 to 18,000rpm|
|Accuracy||0.05% +/- 1 digit|
|Update||0.8 sec (normal mode)|
0.1 sec (capture mode)
|Controls||On, Invert, Capture, Ratio|
|Auto Off||Auto shutdown if inactive for 5 minutes|
|Signal Indicator||Yes in display|
|On target ind.||Yes|
|Low battery ind.||Yes in display|
|Power||4 x AAA batteries-supplied|
