Shimpo 3030AN Magnetic Pick-Up Sensor, requires CABLE-3030



Price: $ 125.00

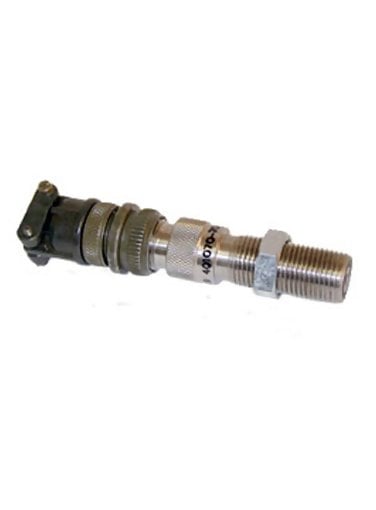

Shimpo 3030AN Magnetic Pick-Up Sensor
Sine wave output from change in magnetic to non-magnetic

Range of 0.01" (0.25 mm) typical clearance

Shimpo 3030AN magnetic pick-up with Amphenol connector; requires sensor cable assembly. This general-purpose unit is designed to mount in a 5/8"-18 threaded hole and is provided with a jam nut for sensor securing.

Model 3030AN pickup provides a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole. The output voltage is directly proportional to the change in magnetic flux intensity over the change in time


line
Features
line

  • Sine wave output from change in magnetic to non-magnetic
  • Change in voltage proportional to magnetic flux intensity over time
  • Range of 0.01" (0.25 mm) typical clearance
  • Amphenol connector


line
Specifications
line

Measuring principle5/8" 18 threaded hole
DisplaySine wave
AdjustmentClearance of 0.1" between the sensor and gear
Temperature Range-100 to 225 F (-75 to 107 C)


line
Downloads
line

Shimpo 3030AN Magnetic Pick-Up Sensor - Instruction Manual

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Shimpo 3030AN Magnetic Pick-Up Sensor, requires CABLE-3030 $125.00
Accessories Price
CABLE-3030 Cable for 3030AN Sensor $125.00
