Compact ET-2109LSR Intrinsically Safe Handheld Tachometer Kit, Non-Contact 3.00 - 99,999 / Contact 3.00 - 99,999 rpm



Price: $ 969.00

Compact ET-2109LSR Intrinsically Safe Handheld Tachometer
Type:Combination Contact & Non-Contact

Measuring Range:
Non-Contact - 3.00 - 99,999 rpm
Contact - 3.00 - 99,999 rpm

Display Type:LCD
Housing Material:High Flow ABS - Metalised
Warranty:1 year

The Compact ET-2109LSR Intrinsically Safe Handheld Tachometer explosion proof handheld tachometer is certifiedEEx ia IIC T4 - ATEX II 2 Gto allow for use in a wide range of hazardous environments including petrochemical, Gas & volatile materials processing industries.

The ET-2109LSR isnot certifiedfor use inMines


line

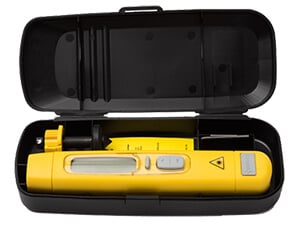

Kit Contents
line

  • Compact ET-2109LSR Intrinsically Safe Handheld Tachometer
  • Reflective tape
  • Contact adapter
  • Calibration certificate
  • 4 AA batteries
  • Instruction Manual
  • Carrying Case


line
Features
line

  • Explosion-Proof Housing
  • Vertical display with 180 inversion capability
  • Includes calibration certificate
  • Memory holds last reading for 1 minute


line
Specifications
line

Measuring Range3.0 - 99,999 rpm
0.3 - 1,500.0 Meters or Yards/min
(4,500 ft/min) or seconds
Resolution.001 rpm
Accuracy0.05% 1 digit
Optical Sensing Range2 - 80" / 50 - 2000mm
Update Time0.8 sec
Capture Mode0.1 Sec
Count0-99999 revs or length in linear
Time Interval0-99999 seconds (auto)
Memory HoldHolds last reading for 1 minute
On Target IndicatorYes
Housing MaterialHigh Flow ABS - Metalised
Batteries4xAAA supplied
Dimensions21 L x 4 W x 3.5 D - cm
Measuring WheelIncluded, 0.1 meter circumference
Weight (kit)0.4 Kg
Warranty1 year
Sensing Distance1 meter (39 inches)
Battery Life6 hours continuous (shorter when using rechargeable type
Display Update Rate0.8 seconds/update (0.1 sec for Max Value capture)


line
Downloads
line

Compact ET-2109LSR Intrinsically Safe Handheld Tachometer - Certification
Compact ET-2109LSR Intrinsically Safe Handheld Tachometer - Instruction Manual
Compact ET-2109LSR Intrinsically Safe Handheld Tachometer - Sample NIST

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Compact ET-2109LSR Intrinsically Safe Handheld Tachometer Kit, Non-Contact 3.00 - 99,999 / Contact 3.00 - 99,999 rpm $969.00
Accessories Price
65-29 - Extra Reflective Tape (1/2 in x 60 in) $15.00
ET-A2100/01 - Repl. Contact Adaptor 0.1m circ. Wheel $135.00
