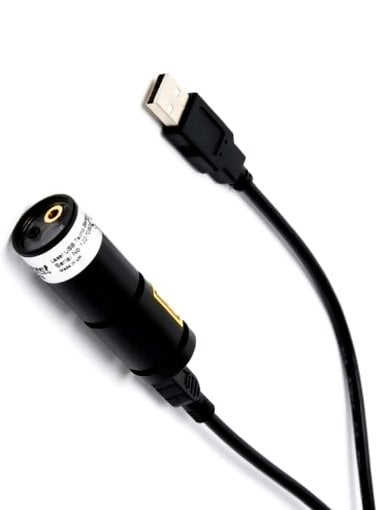

Checkline MiniVLS 313 USB Laser Speed Sensor Tachometer



Price: $ 425.00

Checkline MiniVLS 313 USB Laser Speed Sensor Tachometer
Includes Software for Android or PC

The Checkline CheMiniVLS 313 is a laser speed sensor with USB output for sending data direct to a PC or Android device.


line
Kit Contents
line

  • MiniVLS 313 USB Laser Speed Sensor Tachometer
  • USB 2.0 to mini-B 5 pin Cable
  • USB 3.1 Type C Male to USB 2.0 Type A Female Socket Adapter with OTG
  • OTG USB On The Go Host Adapter Cable USB A Female to Micro B Black
  • Reflective Tape
  • Instruction Manual


line
Features
line

  • Pocket Sized Design
  • Selectable Sampling, from 0.1s to 5s
  • Powered by USB, no batteries or external power required
  • Can be used to measure RPM or Linear Speed


line
Specifications
line

Optical Laser Range2 - 78 in / 50mm - 2000mm
Light SourceRed Laser Class II 635nm
Optical Angle 80 degree to reflective marker
Speed Measurement Range3 - 99,999 rpm
Resolution0.001 rpm
Operating Temperature32 - 122 F / 0 - 50 C
Baud Rate115,200
Connector / Power SourceMini USB
Sampling Rate0.1s to 5s (Adjustable)
Dimensions.78 - 2.55 in / 20 x 65 mm


line
Downloads
line

MiniVLS 313 USB Laser Speed Sensor Tachometer - Data Sheet
MiniVLS 313 USB Laser Speed Sensor Tachometer - Instruction Manual
MiniVLS 313 USB Laser Speed Sensor Tachometer - Windows Software

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Checkline MiniVLS 313 USB Laser Speed Sensor Tachometer $425.00
Accessories Price
65-29 - Extra Reflective Tape (1/2 in x 60 in) $15.00
DT-TRI-HD Tripod for Tachometers and Stroboscopes $35.00
NISTCAL - NIST-Traceable Calibration Certificate and Test Report $100.00
MVLS-BR1 Bracket for MiniVLS Sensors $95.00
