Compact MiniVLS 313 USB Laser Speed Sensor Tachometer



Price: $ 620.00

Compact MiniVLS 313 USB Laser Speed Sensor Tachometer
Includes Software for Android or PC

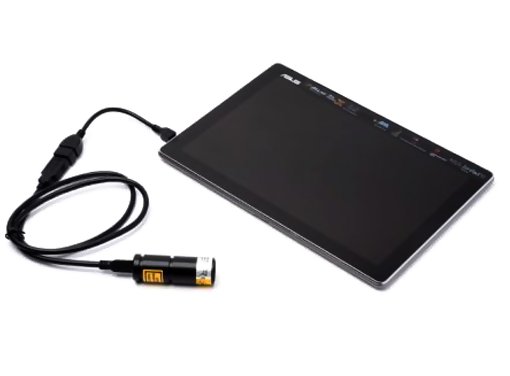

The Compact CheMiniVLS 313 is a laser speed sensor with USB output for sending data direct to a PC or Android device.


line
Kit Contents
line

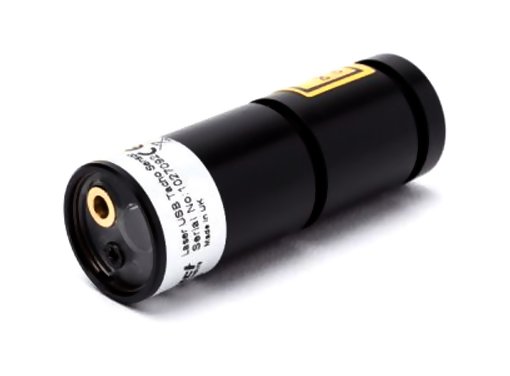

  • MiniVLS 313 USB Laser Speed Sensor Tachometer

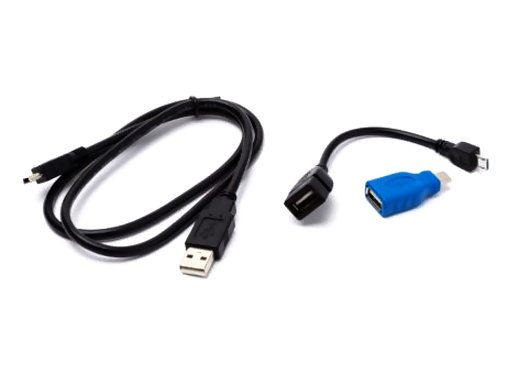

  • USB 2.0 to mini-B 5 pin Cable
  • USB 3.1 Type C Male to USB 2.0 Type A Female Socket Adapter with OTG
  • OTG USB On The Go Host Adapter Cable USB A Female to Micro B Black
  • Reflective Tape
  • Instruction Manual


line
Features
line

Pocket Sized Design

Selectable Sampling, from 0.1s to 5s

Powered by USB, no batteries or external power required

Can be used to measure RPM or Linear Speed


line
Specifications
line

Optical Laser Range2 - 78 in / 50mm - 2000mm
Light SourceRed Laser Class II 635nm
Optical Angle 80 degree to reflective marker
Speed Measurement Range3 - 99,999 rpm
Resolution0.001 rpm
Operating Temperature32 - 122 F / 0 - 50 C
Baud Rate115,200
Connector / Power SourceMini USB
Sampling Rate0.1s to 5s (Adjustable)
Dimensions.78 - 2.55 in / 20 x 65 mm


line
Downloads
line

MiniVLS 313 USB Laser Speed Sensor Tachometer - Data Sheet
MiniVLS 313 USB Laser Speed Sensor Tachometer - Instruction Manual
MiniVLS 313 USB Laser Speed Sensor Tachometer - Windows Software

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Compact MiniVLS 313 USB Laser Speed Sensor Tachometer $620.00
Accessories Price
Compact A2100/03 - Mini Tripod Stand $120.00
205T - Reflective Tape, 1x7 Inch Strip - TAPE $70.00
Compact MVLS-BR1 - Bracket For The MiniVLS Plain Housing $105.00
Compact MVLS-BR2 - Bracket & Camera Bush Screw for MiniVLS Plain Housing $125.00
Compact MVLS-BS1 - Camera Bush Screw $55.00
Compact SIPP/1 - Sensor Interface Power Pack 5V Units Only $510.00
Compact SIPP/2 - Signal Input Cable Tails 5V Units Only $140.00
