MiniVLS 211/ia Intrinsically Safe Optical Speed Sensor with NPN Pulse Output Plain Stainless Steel Housing (5V DC power)



Price: $ 695.00

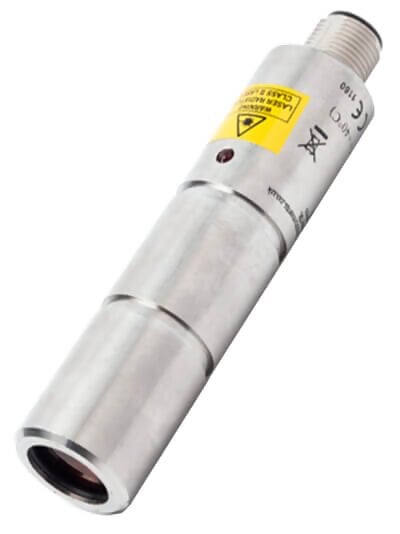

Checkline MiniVLS 211/ia Intrinsically Safe Optical Speed Sensor with NPN Pulse Output
Intrinsically Safe Laser Optical Speed Sensor for RPM measurement
Operating frequency up to 99999 rpm

The Checkline MiniVLS 211/ia Intrinsically Safe Optical Speed Sensor has is Ex-II 1G Ex ia op is IIC T4 Ga (-20C < Ta < +40C) certified. The certification level allows for use in a wide range of hazardous environments in petrochemical, Gas and volatile materials processing industries, ideally suited for Condition Monitoring, Data collectors in balancing applications, these sensors give excellent performance with repeatable results, engineered for easy mounting with the optional Mounting Bracket and Mini Tripod Stand in handheld applications.


line
Features
line

  • Operating frequency up to 99999 rpm
  • Long optical range up to 2 meters
  • Wide angle of operation up to 80 degree
  • On Target indicator standard
  • Protection rating IP67
  • Integral Connector
  • Stainless Steel housing
  • Internally fused to prevent overload


line
Specifications
line

Measuring Range99999 rpm
Sensing Range100mm 2000mm
Angle 80 degree
Light sourceRed Laser Class II 635nm
Wavelength635nm
Power Input5v @ 30ma typical
OutputNPN Pulse
ConnectionM12 4-pin
Dimensions20mm x L 92mm
Operating Temperature-20 / +40C


line
Downloads
line

MiniVLS 211/ia Intrinsically Safe Optical Speed Sensor with NPN Pulse Output - Instruction Manual
MiniVLS 211/ia Intrinsically Safe Optical Speed Sensor with NPN Pulse Output - Ex Certification

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
MiniVLS 211/ia Intrinsically Safe Optical Speed Sensor with NPN Pulse Output Plain Stainless Steel Housing (5V DC power) $695.00
Accessories Price
65-29 - Extra Reflective Tape (1/2 in x 60 in) $15.00
DT-TRI-HD Tripod for Tachometers and Stroboscopes $35.00
MVLS-BR1 Bracket for MiniVLS Sensors $95.00
A2100/39 Magentic Base with Tripod Mount $79.00
SIPP/1 Portable 5Vdc Sensor Power Pack $320.00
