Compact A2105 Gas Engine Tachometer Complete Kit, 60 to 18,000 rpm



Price: $ 349.00

Compact A2105 Gas Engine Handheld Tachometer
Measures RPM of 2 & 4 Stroke Gas / Petrol Engines
60 to 18,000rpm

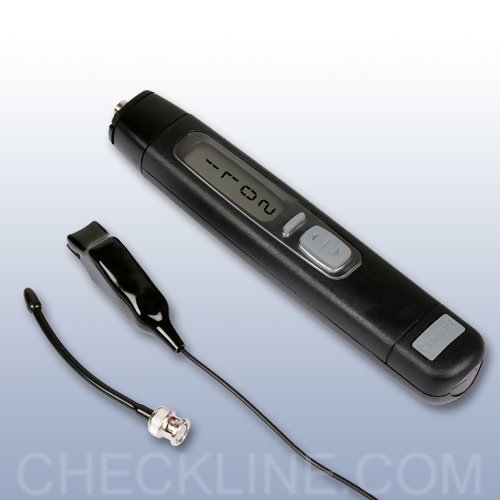

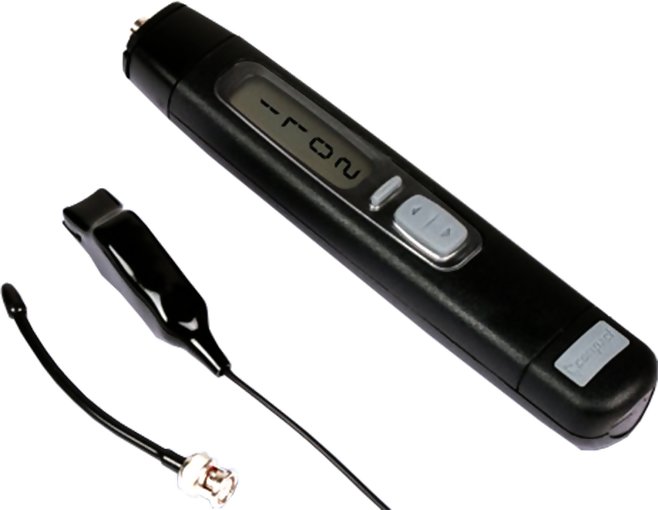

he Compact A2105 Digital Hand-Held Tachometer measures RPM of 2 & 4 Stroke Gas / Petrol Engines with a Non-Contact Antenna Sensor or Clip-On Remote Cable Sensor.

The Compact A2105 is ideal for testing most types of single and multi-cylinder petrol & gas engines with electric and electronic ignition systems, designed for hand-held testing and hands free bench testing of engines, chain saws, disc cutters, horticultural and Forestry machinery, pumps, compressors and similar engine driven equipment.

Automatic Measurement - Auto switch off

The units operate continuously once powered on, measurement will be automatic while speed pulses are being received from the Transducer, after approximately 5 minutes of inactivity the instrument switches off.

Inverting display

This unique feature allows the Tachometers to be used through 180 degrees rotation, providing easy readability in difficult applications.

Maximum revs capture mode

Allows the user to take single shot peak speed checks on machines with automatic overspeed governors and centrifugal clutch checking, the actual maximum speed is held in the display.


line

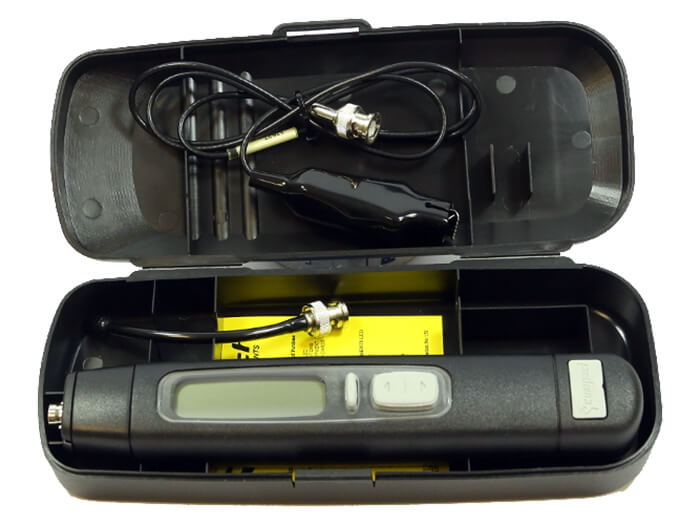

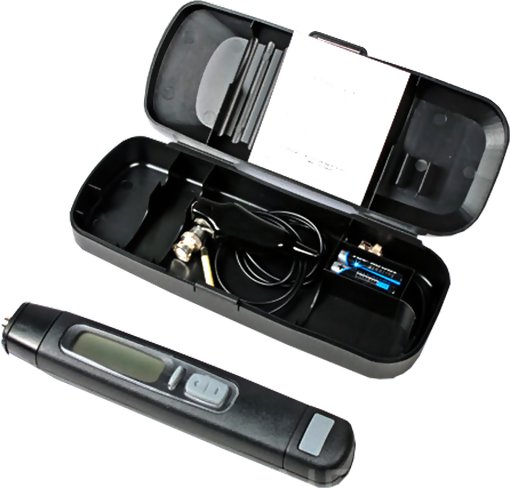

Kit Contents
line

  • Compact A2105 Gas Engine Tachometer
  • Clip-On Cable Sensor
  • Non-Contact Antenna Sensor
  • Calibration certificate
  • AAA batteries
  • Instruction Manual
  • Carrying Case


line
Features
line

  • Supplied with a Non-Contact Antenna Sensor & Clip-On Cable Sensor
  • Measures RPM on 2 & 4 Stroke Gas / Petrol Engines
  • Works with Single & Multicylinder Gas Engines
  • Includes Certificate of calibration
  • Reversible display
  • Real-Time or Peak RPM Display


line
Specifications
line

Speed range60 to 18,000rpm
Resolution10 rpm
Accuracy0.05% +/- 1 digit
Update0.8 sec (normal mode)
0.1 sec (capture mode)
ControlsOn, Invert, Capture, Ratio
Auto OffAuto shutdown if inactive for 5 minutes
Signal IndicatorYes in display
On target ind.Yes
Low battery ind.Yes in display
Power4 x AAA batteries-supplied
Carry CaseSupplied

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Compact A2105 Gas Engine Tachometer Complete Kit, 60 to 18,000 rpm $349.00
