A2108/LSR Advent Laser Tachometer with DA Output

Price: $ 615.00

Compact A2108 Handheld Non-contact Tachometer with Analog Output

The Compact A2108 Non-Contact Tachometer converts RPM into an analog (voltage) output signal allowing you to use any Digital Multimeter, Data Acquisition System or Voltage Recorder as an RPM display. Optional Contact adapter allows you to measure contact RPM or surface speed

line

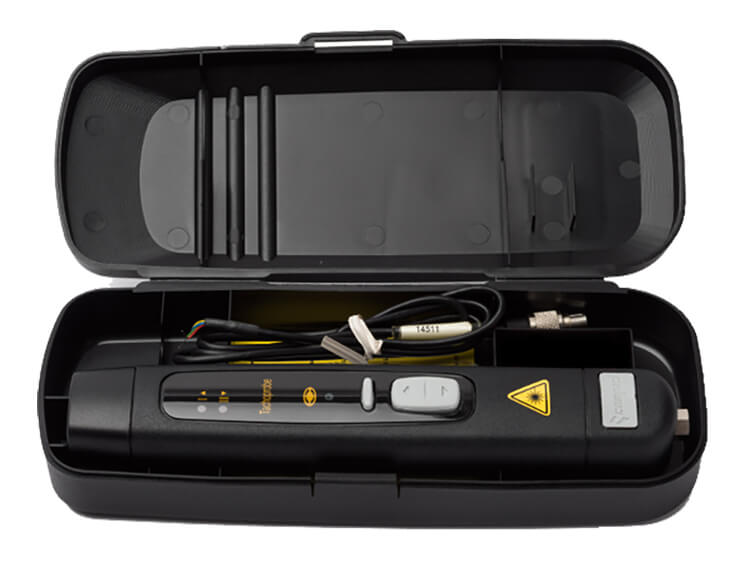

Kit Contents
line

Compact A2108 Handheld Non-Contact Tachometer
Reflective tape
Analogue Adaptor
Calibration certificate
Instruction Manual
Carrying Case

line
Features
line

Long optical range up to 2 metres (6ft)
Very wide speed range up to 60,000 rpm
Optical and Contact measurement with Adaptor
Handheld, bracket or tripod mounting

line
Specifications
line

Speed Range 1 Speed Range 2	100 - 6000 RPM 1000 - 60,000 RPM
Resolution	+/- 1.5mV
Accuracy	+/- 0.5%
Optical Range	50 - 1000mm
Optical angle	+/- 45 deg.
Light Source	Red LED
Optical Angle	+/- 45 Degrees
Carry Case	Included
Contact Adapter	Optional
Voltage Output	-6 vdc Both Ranges
Connections	Coiled cable with 2 x 4mm plugs fitted

line
Downloads
line

Compact A2108 Handheld Non Contact Tachometer Analog Output - Instruction Manual

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
	Product	Price
	A2108/LSR Advent Laser Tachometer with DA Output	$615.00
	Accessories	Price
	NISTCAL - NIST Traceable Calibration Certificate	$120.00
	205T - Reflective Tape, 1x7 Inch Strip - TAPE	$70.00
	Compact A2100/01 - Advent Contact Adaptor	$175.00
	Reflective Tab Sheet, 35 1/2" x 1/2" Squares - TAB	$50.00
	Output Cable for A2103/LSR/001, 4-Pin DIN to BNC, 2 meter length	$35.00
