The Compact MT2013 Optical Tachometer and Stroboscope Calibrator was originally designed for inhouse test and calibration of our comprehen-sive range of Digital Optical Tachometers, Optical Speed sensing products and Stroboscopes.
The Compact MT2013 is suitable for Calibration of virtually any make of Optical Tachometer, Optical Speed Sensors and Stroboscopes, in addition, they can be used with Digital Panel Tachometers, Ratemeters, Batch counters and similar pulse related products.
The Calibrator can be used to test Panel and Bench type Tachometers via the pulse output feature and also tests proximity and optical speed Sensors.

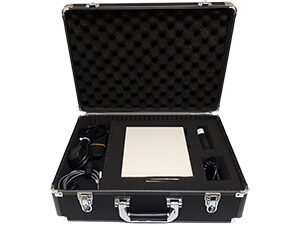

Kit Contents
- Compact MT2013 Optical Tachometer And Stroboscope Calibrator
- Reflective tape
- VLS5/J Speed Sensor 3.5mm Jack Plug
- 3 Output Leads
- Calibration certificate
- Power Cord
- Instruction Manual
- Carrying Case
|  |
Features
- Wide input pulse rate range 0.05 200 KHz using the input divider and scaling features
- High accuracy and ease of reading
- 5 Digit LED display
- Full scaling facilities up to 5 digits
- Selectable display revolution 4 options
- Low speed capability 3 rpm to 0.001 revolution
- Strobe calibrator
- Time interval for cycle time and reciprocal rate measurement (Very low pulse rate can be monitored)
- Count mode up to 8 digits auto ranging
- Time accumulative mode average for rate calculation
- Pulse, RS-232 serial and Analogue output options
- Specials available to order
Specifications
Digital Display
| 5 Digit LED - displays input or output speeds. |
Speed Range
| 3 100,000 rpm in 4 ranges | 4 position Selector switch |
Speed
Adjustment | Fine adjust via multi turn potentiometer |
| Accuracy | +/- 0.01% +/- 1 digit |
| Resolution | Autoranging max. 0.001 rpm |
Output Facilities
| LED attachment for Optical Tachometers TL pulses for Digital Instrumentation |
| Input Facilities | Optical Sensors [supplied] ( can be used for Stroboscope calibration), Proximity Sensors
3 wire 10-30vdc types, TTL input & magnetic Sensors |
Sensor Supplies
| 5vdc & 12vdc |
| Controls | Signal in/out switch for Tachometers or Strobes |
Input/Outputs
| Strobe output Via 3.5mm Stereo socket |
| Signal Input | Via 5 pin DIN socket |
| Sensor Power | Via signal input socket |
| Power Input | 110/240vac (dc options by request) |
A traceable Calibration certificate is supplied with each product. An optical sensor is supplied for stroboscope calibration
