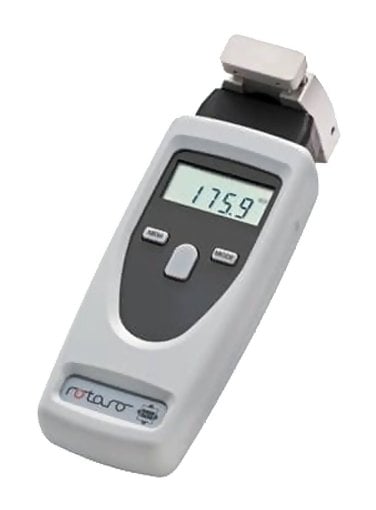

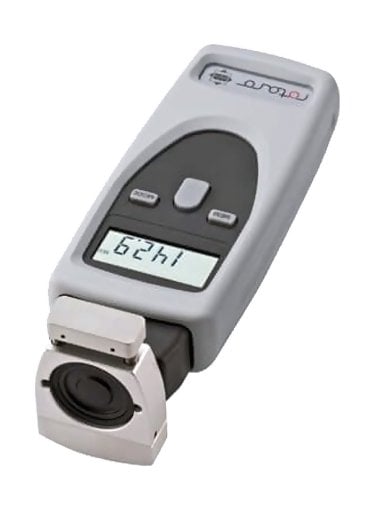

Checkline CDT-2000HD-TW Welding Wire Speed Meter / Combination Tachometer kit
Price: $ 895.00
inches or meters per minute

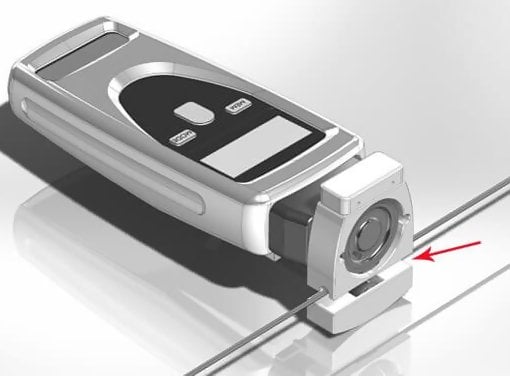

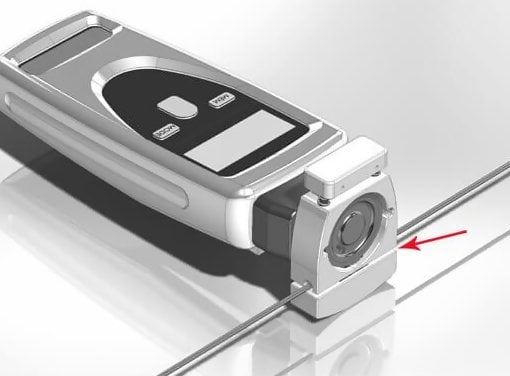

For use on Welding Wire Diameter Range of 0.032" - 0.120" (0.8 to 3.0mm) The Checkline CDT-2000HD-TW accurately measures the linear feed speed of welding wire in feet, inches or meters per minute. A precision measuring head secures the wire and maintains contact against the measuring wheel for accurate measurements. Based on the award winning CDT-2000HD tachometer, the CDT-2000HD-TW also measure RPM via contact and non-contact methods.

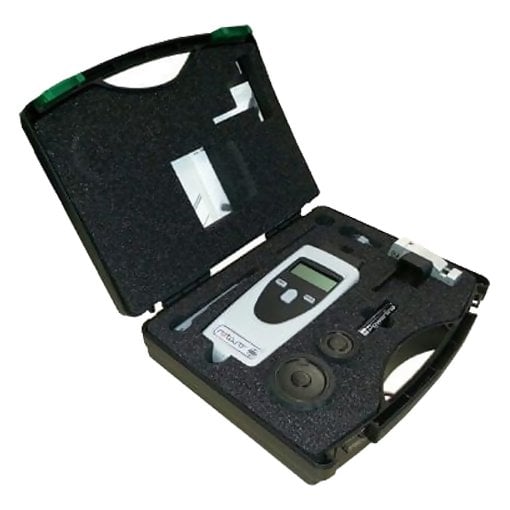

Kit Contents
- CDT-2000HD-TW Welding Wire Speed Meter / Combination Tachometer Kit
- Welding Wire Speed Adapter
- Slide-In Tachometer Contact Adapter
- 6" & .1m Surface Speed Wheels
- Cone Tip
- Funnel Tip
| - Extension Shaft
- Reflective Tape
- Two (2) AA Batteries (1.5 V)
- Calibration Certificate
- Instruction Manual
- Carrying Case
|  |
Features
- Includes Traceable Calibration Certificate
- For use on Welding Wire Diameter up to 0.120" / 3mm
- Wire Speed can be measured in feet/min, meters/min or in/min (user selectable)
- Total Length can be measured in feet, meters, inches.
- Spring-loaded head and ball-bearing mounted contact roller eliminates slip and ensures accuracy
- Designed and fabricated in Germany
Specifications
| Accuracy | 0.02% of reading or 1 digit | | Display | 5 - Digit LCD, 10mm high | | Decimal Point | Automatic | | Memory System | Maximum, minimum, and last reading (retained in memory for the life of the batteries) | | Measurement System | Non-Contact: Visible LED light beam
Contact: Contact adapter | | Engineering Units | RPM: RPM
Surface Speed: Ft/min, inch/min & meters/min
Length: Feet, inches, meters | | Sensing Distance | Up to 24 inches (60 cm) | | Display Update Time | 0.5 seconds or one measuring | | Auto Power Off | After 30 seconds of non-use (minimum, maximum and last reading retained in memory) | | Battery Life | 40 hours continuous use | | Battery | 2 AA (1.5 V) or rechargeable | | Weight | 6 ounces (170 grams) | | Housing Material | ABS Plastic housing with removable protective rubber shell | | Operating Temperature | 32 to 122 F (0 to 50 C) | | Storage Temperature | -4 to 150 F (-20 to 70 C) | | Accessories included | Contact adapter, cone tip, universal surface speed wheel, reflective tape, operating instructions and foam-fitted, hard plastic carrying case | | Optional Accessories | Shaft extension, 3.15 inches (80 mm) | | Warranty | 5 years | | Calibration Certificate | Included |
 Ranges
| Speed Range | 0.30 - 6,500 feet/min
0.10 - 1,999 meters/min
4.0 - 78,000 inches/min | | Resolution | .01 from 0 - 100
.1 from 100 - 1,000
1 from 1000 - 99,999 |
