HTM HTM-500F-ATEX ATEX-Certified Hand-Held Mechanical Tachometer, 30-50,000 rpm/15-25,000 ft/min with 6" Circumference Surface speed Wheel

Price: $ 795.00

HTM ATEX Intrinsically Safe Hand-Held Mechanical Tachometer

4 Models, 2-English & 2-Metric for RPM and Surface Speed

Suitable in all surface industries in hazardous explosive areas

Accuracy of 0.5% Full Scale and CE-Certified

4 Models, 2-English & 2-Metric
HTM-100F-ATEX10-10,000 rpm/5-5,000 ft/min
HTM-500F-ATEX30-50,000 rpm/15-25,000 ft/min
HTM-100M-ATEX10-10,000 rpm/1-1,000 m/min
HTM-500M-ATEX30-50,000 rpm/3-5,000 m/min

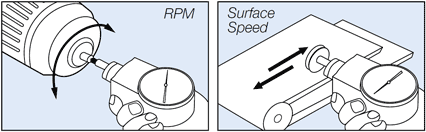

The new HTM-ATEX intrinsically safe mechanical hand-tachometer is designed to accurately measure RPM and surface speed on a wide range of applications. Favored in several industries, including elevator maintenance, mining industry and others, Mechanical Tachometers using a pointer and dial to display RPM or surface speed --- without the need for batteries!

Additionally, the range of variation and frequency of variation of the measurement is evident with the speed and span of the movement of the pointer. Includes Peak-Hold button. 3-Position Range Selector Switch provides highest possible resolution for each application. All HTM-ATEX models are rated at an accuracy of 0.5% Full Scale or better.

The HTM-ATEX is supplied fitted with a durable rubber sleeve providing extra ergonomic benefits for comfortable and secure hand-held use and provided an additional measure of physical & environmental protection. The RED 3-Position Range Selector Switch provides highest possible resolution for each application providing a multiplier of 1X, 10X or 10X for reading of dial.

line
Kit Contents
line

HTM ATEX 100M or 500M Intrinsically Safe Hand-Held Mechanical Tachometer
Wheel 0,1 m
Measuring tip

Measuring funnel
Extension shaft
Operating instructions
Case

line

HTM ATEX 100F or 500F Intrinsically Safe Hand-Held Mechanical Tachometer
Wheel 6"
Measuring tip

Measuring funnel
Extension shaft
Operating instructions
Case

line
Features
line

NIST-Traceable Calibration & Test Report optionally available under p/n NISTCAL
Accuracy of 0.5% Full Scale
Memory button holds pointer in "last" position until reset
NO BATTERIES required!
3-Position Range Selector Switch provides highest possible resolution for each application
Warranty of 18 months
Rubber shell on housing provides extra protection and improved grip
Supplied as a complete kit with cone & funnel tip adapters, shaft extension & surface speed wheel in foam-fitted carrying case
Over-sized 3" Dial (70mm) uses 2 separate color scales making reading RPM (black) and Surface Speed (red) quick and easy
Suitable in all surface industries in hazardous explosive areas

line
Specifications
line

RPM Ranges	HTM-100F/M-ATEX 10-10,000 rpm x1:10-100 x10:100-1,000 x100:1000-10,000	HTM-500F/M-ATEX 30-50,000 rpm x1:30-500 x10:300-5,000 x100:3000-50,000
Surface Speed Range 100-Series Models	HTM-100F-ATEX 5-5,000 ft/min x1:5-50 x10:50-500 x100:500-5,000	HTM-100M-ATEX 1-1,000 m/min x1:1-10 x10:10-100 x100:100-1,000
Surface Speed Range 500-Series Models	HTM-500F-ATEX 15-25,000 ft/min x1:15-250 x10:150-2,500 x100:1,500-25,000	HTM-500M-ATEX 3-5,000 m/min x1:3-50 x10:30-500 x100:300-5,000

Accuracy	0.5% Full Scale
Surface Speed Range Metric Models	must divide value on dial by 10 HTM-100M-ATEX and HTM-500M-ATEX models only
Dial	3 inch (70 mm) diameter, 2-color grid RPM-Black and SURFACE SPEED-Red

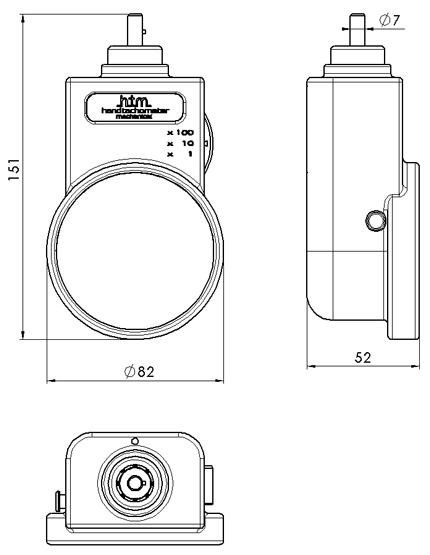

Dimensions - tach	6.1 x 3.4" x 2.2" (155 x 85 x 55 mm)
Dimensions - kit	9.9" x 8.2" x 2.4" (252 x 207 x 60 mm)
Housing Material	Plastic
Weight	10.6 oz (300 g)
Warranty	1 year
Operating Temp.	32F -104F (0C - 40C)
Storage Temp.	14F - 104F (-10C - 40C)
Warranty	18 months

line
Accessories
line

Model	HTM-100 F-ATEX	HTM-500 F-ATEX	HTM-100 M-ATEX	HTM-500 M-ATEX
6" Wheel
0.1m Wheel
Cone Tipe
Funnel Tip
Shaft Extension

line
Related Products
line

HTM
Hand-Held Mechanical Tachometer

Accuracy of 0.5% Full Scale - Memory button holds pointer in "last" position until reset

line

ET-2109LSR
Intrinsically Safe Tachometer

Certified for use in Hazzardous Areas (EEx ia IIC T4 - ATEX II 2 G rating) - Digital LCD display with 180 inversion capability - Includes factory calibration certificate

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
	Product	Price
	HTM HTM-500F-ATEX ATEX-Certified Hand-Held Mechanical Tachometer, 30-50,000 rpm/15-25,000 ft/min with 6" Circumference Surface speed Wheel	$795.00
	Accessories	Price
	NISTCAL - NIST-Traceable Calibration Certificate and Test Report	$100.00
	DT6 - 6 inch Circumference Surface Wheel for F Models	$30.00
	CDT-WHEEL - 0.1m Circumference Surface Wheel for M Models	$20.00
	HTM-CT - RPM Cone Tip Adapter	$12.00
	HTM-FT - RPM Funnel Tip Adapter	$12.00
	HTM-SX - Shaft Extension for HTM	$12.00
