Shimpo DT-2100 Tachometer with USB Output, Combination Contact / Non-Contact



Price: $ 345.00

Shimpo DT-2100 Tachometer with USB Output
Continuous Data-Logging, Optional Windows Software

Measuring Range: Non-Contact - 1.00 - 99,999 rpm | Contact - 1.00 - 25,000 rpm


Warranty:1 Year

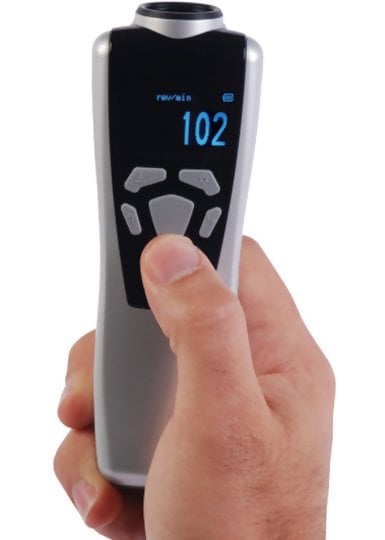

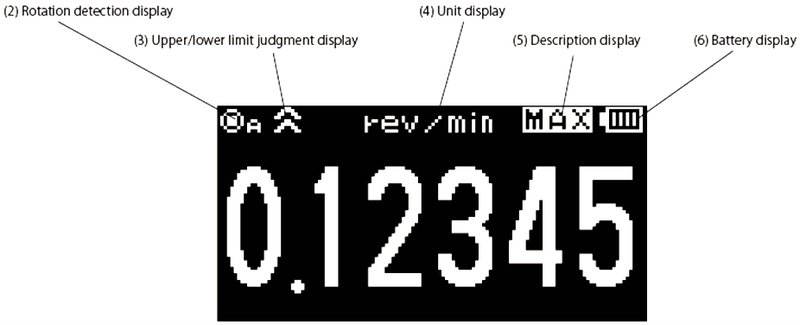

The Shimpo DT-2100 Tachometer with USB Output is an advanced combination contact / non-contact hand-held tachometer. The DT-2100 features data-logging, USB output and a programmable scaling feature to offset RPM according to application variables. It features a backlit LED Display with upper/lower limit icons and a unique X-Y Graphic mode. Additional display modes unique to the DT-2100 is the "Needle Sweep" and Bar Graph" offers the user a choice of how to view the data. The display can also be inverted to optimize the viewing angle.

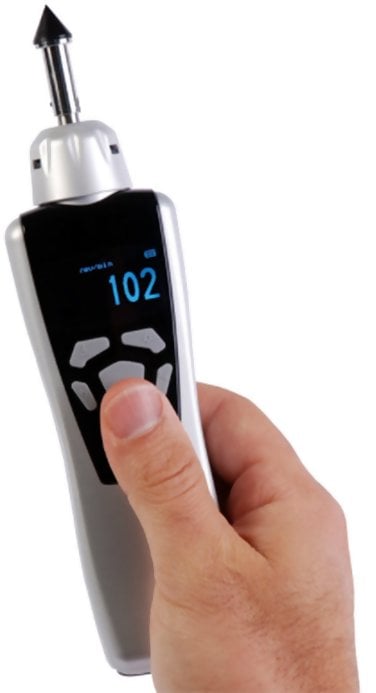

In non-contact mode the tachometer measures RPM up to 99,999 RPM at distances up to 13 feet or 500 cm. The DT-2100 can also measure contact RPM, surface speed, or length using the supplied screw-on adapter.

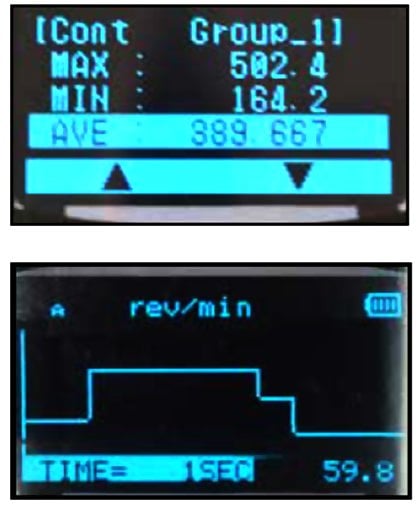

Data logging can be set for single point or continuous logging. Single data points as well as statistics (Max, Min, Average) can be stored in the built-in memory and recalled to the display. Often users need to adjust machinery during testing, with the DT-2100 you can mount it on a tripod, select continuous logging and adjust machinery as necessary. After the test, you can easily review the data on the DT-2100's display or download to a computer using the optional PC Software.


line

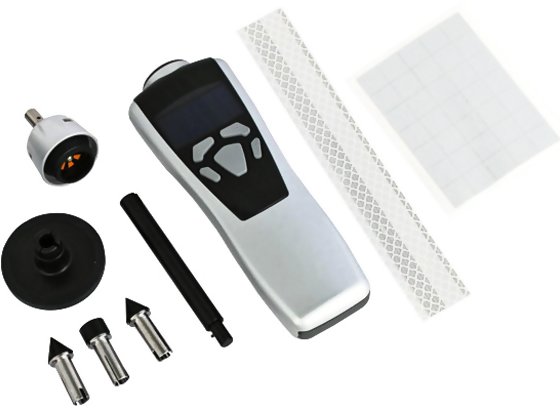

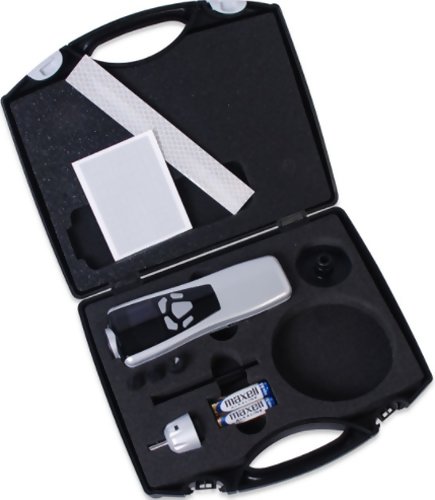

Kit Contents
line

  • Shimpo DT-2100 Tachometer with USB Output
  • 2 cone adapters
  • Funnel adapter
  • 3.5 extension shaft
  • Surface speed wheel (6 circumference)
  • Reflective tape
  • 2 AA batteries
  • Contact adapter
  • Carrying case


line
Features
line

  • Data Logging with Continous, Single Unit or Statistics modes
  • View data and statistics on tachometer display or with optional Windows software
  • Built-in Memory with USB Data Output
  • Powerful laser for non-contact measurement 2 to 13.1 (5 to 400 cm)
  • Non-Contact length measuring mode (requires reflective tape or edge of roller)
  • Programmable multiplier to convert reading based on wheel diameter, gear ratios, etc...
  • On-screen hi-lo limits for pass/fail analysis
  • Auto-detection of contact adapter
  • Reversible Display
  • 1/4-20 Threaded Insert on bottom of housing for fixed-mounting or use on Tripod


line
Specifications
line

Range6-99,999 rpm Non-contact
0.8-25,000 rpm Contact
Accuracy0.006% of reading 1 least significant digit
Measuring UnitsSpeed: rpm, m/min, cm/min, inch/min, ft/min, yds/min, rps, m/sec, cm/sec, inch/sec, km/hr, mph
Distance: cm, m, km, in, ft, yd
MemoryContinuous Mode: 1000
Single Mode: 100
Statistics Mode: 100
Laser Sensing Distance2 inches up to 13.1 Feet (5 to 400 cm)
DisplayGraphical Blue Light OLED, reversible
Display Update TimeSelectable: 100 ms, 500 ms, 1 sec, 5 sec
Power2 AA 1.5V batteries or USB
Battery LifeApprox: 20 hours with brightness set to 20%
Temperature Limits32 - 113F (0 - 45C) Non-Condensing
ConstructionPolycarbonate
Dimensions6.1 x 2.2 x 1.4 (155 x 55 x 35 mm)
Product Weight4.14 oz (125 g)
ApprovalsCE, RoHS, PSC, FDA, IEC/EN 60825-1 : 2007
Warranty1 Year
Included Accessories2 cone adapters, funnel adapter, 3 extension shaft, surface speed wheel (6 circumference), 2 AA batteries, contact adapter and carrying case


line
Downloads
line

Shimpo DT-2100 Tachometer with USB Output - Instruction Manual
Shimpo DT-2100 Tachometer with USB Output - Software Manual
Shimpo DT-2100 Tachometer with USB Output - Tachometer Manual
Shimpo DT-2100 Tachometer with USB Output - Dimensional Drawing

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Shimpo DT-2100 Tachometer with USB Output, Combination Contact / Non-Contact $345.00
Accessories Price
NISTCAL - NIST-Traceable Calibration Certificate and Test Report $225.00
DT-2100-OP-PCS Software for DT-2100 Data Logging Tachometer, includes USB cable. For Windows $95.00
DTCA Cone Tip for Hand-held tachometers $10.00
DTFA Funnel Tip for Hand-held tachometers $10.00
DTSX Shaft Extension for Tachometers, 3 inch $15.00
DT6 6 Inch Circumference Tachometer wheel, 7mm shaft $30.00
DT12 12 Inch Circumference Tachometer wheel, 7mm shaft $50.00
205T Reflective Tape, 1x7 Inch Strip $6.00
205TS Reflective Tab Sheet, 35 1/2 in x 1/2 in Squares $15.00
205TS-4 Qty 4 Reflective Tab Sheet, 35 1/2 in x 1/2 in Squares $18.00
DT-2100-OP-CAS Screw-On Contact Adapter for DT-2100 Tachometer $70.00
DT-TRI-HD Tripod for Tachometers and Stroboscopes $35.00
BATT-RC4AA-WC 4-pack 2300mAh AA Ni-MH Rechargeable Batteries & Charger Kit $35.00
