Hans-Schmidt YS-105 Yarn Speed and Length Meter, LCD display, 16 Selectable Measuring Units
Price: $ 523.00
Includes Traceable Calibration Certificate
2-Year Warranty
The Hans-Schmidt YS-105 Yarn Speed and Length Meter combines the functions of two separate instruments in one, easy-to-use device. It accurately measures the speed and length of yarns, and other filaments using a unique "wrapper" roller. This precision roller directs the filament onto the low-inertia, U-grooved measuring wheel to maximize contact and eliminate filament slip and breakage. The YS-105 can also be used as a contact tachometer to measure linear speeds of moving surfaces such as conveyor belts, webs of paper or fabric, etc.

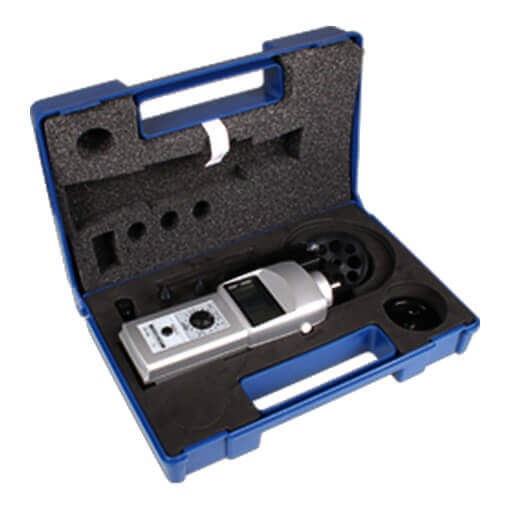

Kit Contents
- Universal 6" circumference wheel (surface speed)
- 6" circumference grooved wheel (yarn speed)
- Cone tip
- Funnel tip
- 3" extension
- Two AA batteries
- Operating instructions
- Carrying Case
|  |
Features
- Includes Traceable Calibration Certificate
- LCD Display
- Slide-on measuring heads make it simple to rapidly convert from one function to another
- 16 adjustable measuring units: rpm, rev, m/min, m/h, ft/min, ft/h, yd/min, yd/h, in/min, in/h, mil/h, cm, m, in, ft, yd
- Measuring range (yarn and wire): speed 0.1 5000 m/min length 0.1 9999 m
- Max. material diameter: wire 0.3 mm yarn 1.5 mm
- Built-in memory Max., Min and last four readings
- 2-Year Warranty
Specifications
| Certificate of Compliance | 2.1 according EN 10204 | | Measuring range (floating decimal point) | Revolution: 0.1 25000 rpm; 6 9999.9 rph Speed: z. B. 0.02 3810 m/min; 0.9 99999 m/h; 0.6 99999 in/min; 0.05 12500 ft/min; 3 99999 ft/h; 0.02 4167 yd/min; 1.0 9999 yd/h; 0.0006 142.5 mil/h Length: 0.5 99999 cm; 0.005 99999 m; 0.1 9999.9 in; 0.01 99999 ft; 0.005 9999.9 yd | | Accuracy | Revolution: 0 999.9 rpm (0.1 rpm) 1 digit 1000 9999.9 rpm (1 rpm) 1 digit 10000 25000 rpm (0.01% of reading) 1 digit Speed and length: 0.4 % of reading, 1 digit | | Measuring units | evolution: rpm, rph; Total revolutions (counter): rev Speed: m/min; m/h; ft/min; ft/h; yd/min;yd/h; in/min; in/h; mil/h Length: cm; m; in; ft; yd | | Memory | MIN + MAX + last 4 values | | Resolution | Length: 0.00254 m/impulse (with 6 inch measuring wheel) Revolution: 60 impulse/revolution | | Display | 5 digit, LCD 12 mm | | Display update | 1 s | | Over range indicator | Display is flashing | | Auto power off | After 5 min of non-use | | Power supply | 2 x 1.5 V Type AA; approx. 65 h continuous use | | Low battery indicator | LO BAT flashes at the display | | Housing material | Die-cast aluminium | | Dimensions | Approx. 183 x 80 x 46 mm (LxWxH) |
|
|
|
