The Compact A2103 Advent Professional Handheld Tachometer is fully featured including5 digit LCD inverting displaywith legends for all functions and measurement parameters, selectable ranges for revs, meters, feet, yards per minute or per second. With additional features including maximum, average and minimum reading capture, last reading hold, count revs or length & time modes.
A2103-LSR-001 - Multi function Optical/Contact Counter, Timer & Speed Sensor with signal output facilities.
This model is a very versatile dual purpose instrument, operating both as a multirange Optical or Contact Tachometer, Counter, Timer or a self powered remote Optical Sensor for machine monitoring requirements.
A TTL type pulse output facility and camera tripod mounting bush are standard features, designed for both hand held and fixed situations for monitoring continuous and occasional speed of machines.
Signal Output features - Model A2103-LSR-001
Pulse Output facility - 5v Pulse output. Output via socket on rear of housing, supplied with 2 metre BNC output cable.This model has these additional features.
Kit Contents

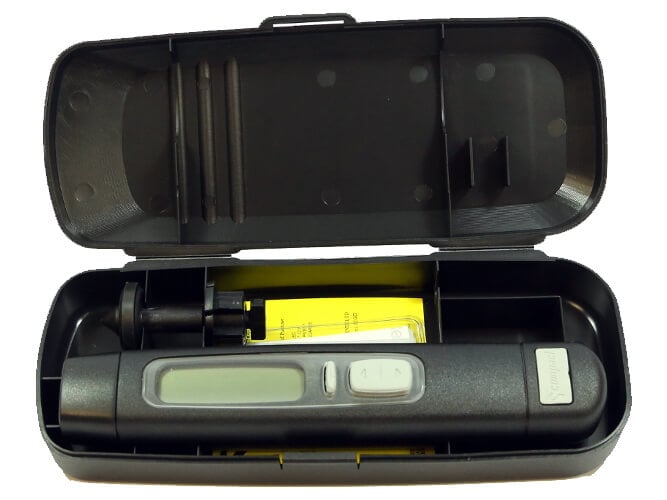

- Compact A2103 Advent Professional Handheld Tachometer
- Reflective Tape
| - Certificate of Calibration
- Instruction Manual
- Carrying Case
|  |

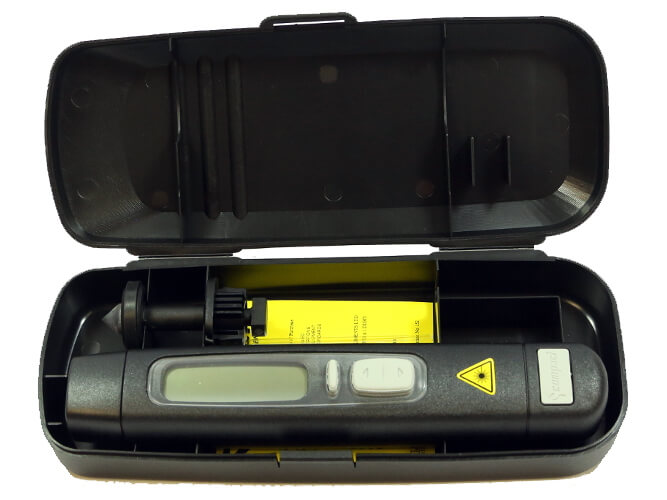

- Compact A2103/LSR Optical-Contact Laser Tachometer
- Reflective Tape
| - Certificate of Calibration
- Instruction Manual
- Carrying Case
|  |

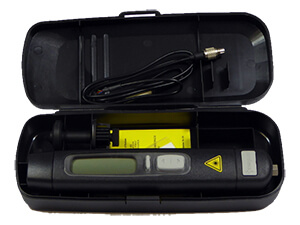

- Compact A2103/LSR/001 Advent Professional Handheld Tachometer
- Pulse Output
- Reflective Tape
| - Certificate of Calibration
- Instruction Manual
- Carrying Case
|  |
Features
Compact A2103 Advent Professional Handheld Tachometer
- Optical Range: 50mm 1000mm
- Optical Angle: 45 degree
- LED Light Source
- Maximum Speed: Captures maximum speed
- Minimum Speed: Captures minimum speed
- Fast Time-base: 0.1 seconds in Capture mode
- Average: Averages over last 8 readings
Compact A2103/LSR Advent Professional Handheld Tachometer
- Optical Range: 50mm 2000mm
- Optical Angle: 80 degree
- Red Laser Class II 635nm
- Maximum Speed: Captures maximum speed
- Minimum Speed: Captures minimum speed
- Fast Time-base: 0.1 seconds in Capture mode
- Average: Averages over last 8 readings
Compact A2103/LSR/001 Advent Professional Handheld Tachometer
- Optical Range: 50mm 2000mm
- Optical Angle: 80 degree
- Red Laser Class II 635nm
- Maximum Speed: Captures maximum speed
- Minimum Speed: Captures minimum speed
- Fast Time-base: 0.1 seconds in Capture mode
- Average: Averages over last 8 readings
- Pulse output facility
- Tripod bush
- Signal output cable
- Remote on/off via cable
Specifications
| Speed range | 3 to 99,999 rpm and rps |
| Resolution | max. 0.001 (auto) |
| Accuracy | 0.05% +/- 1 digit |
| Update | 0.8 sec |
| Capture | mode 0.1 sec |
| Count | 0-99999 units |
| Time interval | 0-99999 secs (autoranging) |
| Memory | Holds last reading 1 minute |
| On target ind. | Yes |
| Low battery ind | Yes |
| Power | 4x AAA batteries |
| Contact Adapter | Supplied |
| Carrycase | Supplied |
