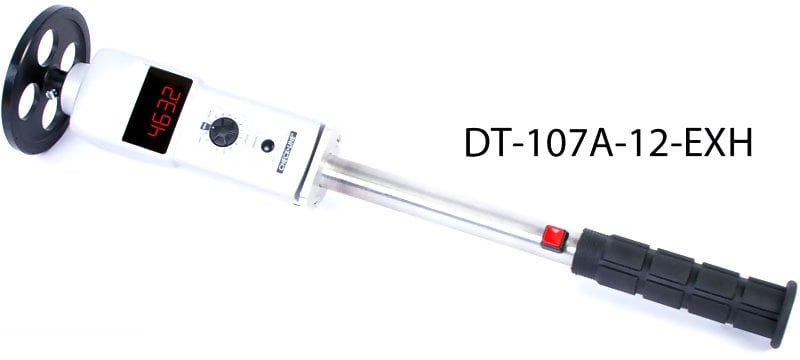

Shimpo DT-107A-12 Digital Contact Tachometer with LED Display and 12" Circumference Wheel
$413.00
Loading...
Loading product info...
Similar Products to Consider
Product Description

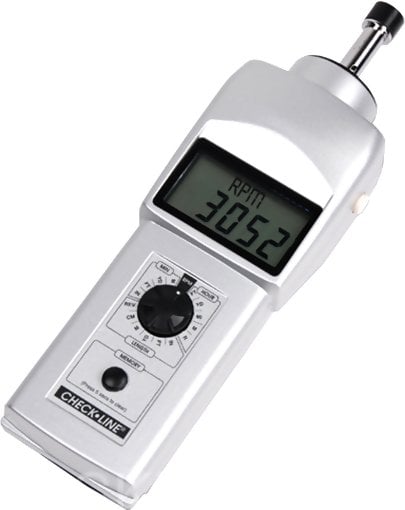

Contact Only Tachometer
DT-105A (LCD Model)
DT-107A (LED Model)
DT-107A-12 (LED Model)
The Shimpo Handheld Tachometer accurately measures rotational and surface speed, as well as length. Built-in selector switch permits the user to display readings in a wide variety of engineering units. The Shimpo DT-105A - DT-107A Handheld Tachometers includes a 12" (30 cm) circumference measuring wheel which is offered for safer and easier surface speed measurement by keeping the users hand farther from the moving surface and slowing down the rotational speed.

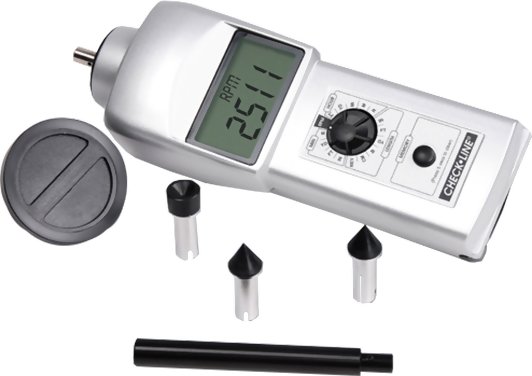

Kit Contents
- Shimpo DT-105A - DT-107A Handheld Tachometers
- 6" circumference surface speed wheel
- 2 two cone tip adapters
- Funnel tip adapter
- Shaft extension
- 2 two AA batteries
- Operating instruction manual

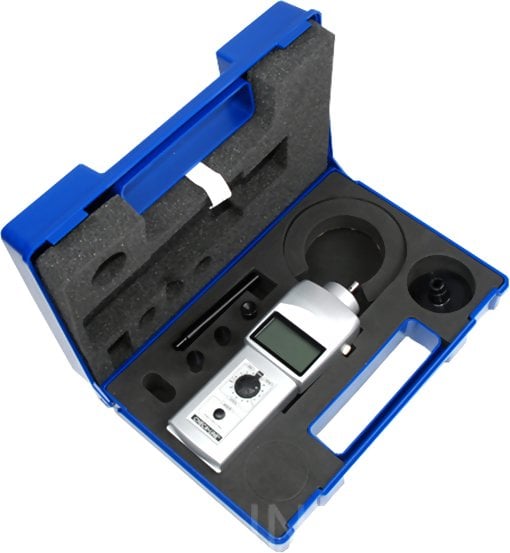

- Carrying case
Features

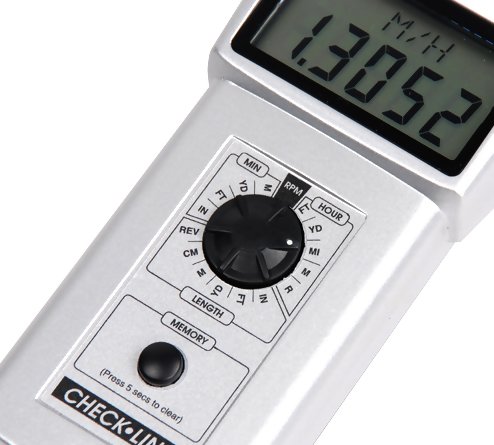

- Built-in memory for last, maximum, minimum and 10 separate readings
- Rugged cast aluminum housing
- Includes NIST calibration Certificate
Specifications
| Display Range | 0.10 to 25,000 rpm with floating decimal |
| Accuracy | 0.10 to 999.99 rpm: 0.06 rpm 1,000.0 to 9,999.9 rpm: 0.6 rpm 10,000 to 25,000 rpm: 0.006% rpm |
| Measurement Units | |
| per Minute | Revolutions, Inches, Feet, Yards, Meters |
| per Hour | Revolutions, Inches, Feet, Yards, Meters |
| Total | Revolutions, Inches, Feet, Yards, Centimeter, Meters |
| per Second | Revolutions, Inches, Feet, Yards, Meters (optional, inquire) |
| Memory System | 13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements) |
| Over-Range Indicator | Flashing numerals |
| Detection | Optical coupler, 60 pulses/rev |
| Update Time | 1 second (typical) |
| Batteries | Size: 2 1.5 V AA Life: Approx. 65 hrs. (DT-105A) Life: Approx. 40 hrs. (DT-107A) |
| Low Voltage Indicator | Flashing "LO BAT" display (DT-105A) " B" display (DT-107A) |
| Operating Temp | 32 to 113 F (0 to 45 C) |
| Weight | 0.9 pounds (400 grams) |
| Dimensions | 7.3" L x 2.4" W x 1.8" H |
| Warranty | 1 year |
| Accessories | 2 cone adapters, 1 funnel adapter, 3-1/2" extension shaft, 1 surface speed wheel (6" circumference), carrying case, operating instructions |
Downloads
 | Shimpo DT-105A - DT-107A Handheld Tachometers - Data Sheet |
| Shimpo DT-105A - DT-107A Handheld Tachometers - Instruction Manual |
