Handheld Tachometers | Buy Shimpo DT-207LR Contact / Non-Contact Tachometer with LED Display and 6 in Circumference Wheel

Shimpo DT-205LR DT-207LR Handheld Tachometer NSN 6680-01-378-6490

Housing Material:Metal

Warranty:1 Year

DT-205LRLCD Display with 6" Circumference Measuring Wheel
DT-205LR-12LCD Display with 12" Circumference Measuring Wheel
DT-207LRLED Display with 6" Circumference Measuring Wheel
DT-207LR-12LED Display with 12" Circumference Measuring Wheel

The Shimpo DT-205LR DT-207LR Handheld Tachometer NSN 6680-01-378-6490 combine the best features found in both contact and non-contact tachometers for the accurate measurement of rpm, surface speed and length. The screw-in contact adapter makes it quick & easy to convert from non-contact to contact operation.

NSN 6680-01-378-6490

line

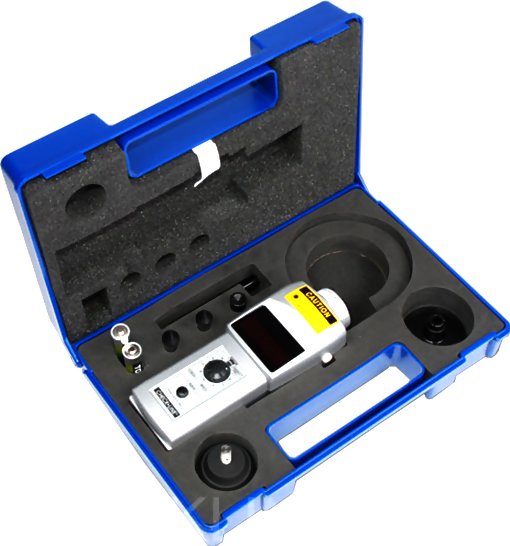

Kit Contents
line

Shimpo DT-205LR DT-207LR Handheld Tachometer NSN 6680-01-378-6490
Reflective tape
Screw-in contact adapter
2 cone tips
Funnel tip
Shaft extension
Surface speed wheel
2 two AA batteries
Operating instruction manual
Carrying case

line
Features
line

High-precision laser measures from distances up to 14 feet
LCD Version for use in sunlight and for longest battery life
LED version for use in poorly lit or dark environments
Includes 6" circumference surface speed wheel
Built-in memory for last, maximum, minimum and 10 separate readings
Includes Traceable calibration Certificate
DT-205LR NSN: 6680-01-378-6490

line
Specifications
line

Measuring Range	Non-Contact- 6 to 99,999 rpm Contact- 0.8 to 25,000 rpm
Accuracy	6 to 8,299 rpm: 1 rpm 8,300 to 24,999 rpm: 2 rpm 25,000 to 99,999 rpm: 0.006% rpm
Resolution	Non-Contact Mode: 1 RPM Contact Mode: 0.1 RPM
Display	DT-205LR:(LCD MODEL) 5 digit 0.47" (12mm) high DT-207LR:(LED MODEL) 5 digit 0.4" (10mm) high
Measurement Units	Per Second:Inches, Centimeters (optional, inquire) Per Minute:Revolutions, Inches, Feet, Yards, Meters Per Hour:Miles, Kilometers (optional, inquire) Total:Revolutions, Inches, Feet, Yards, Centimeter, Meters
Measuring Distance	14 feet (4.2 m) maximum
Detection	Laser Diode, Class II
Memory	13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements)
Over-Range Indicator	Flashing numerals
Update Time	1 second (typical)
Batteries	2 - 1.5 V AA
Battery Life	DT-205LRApprox 40 hrs DT-207LRApprox 25 hrs
Low Voltage Indicator	DT-205LRFlashing "LO BAT" display DT-207LR"B" display
Operating Temp	32 to 113 F (0 to 45 C)
Construction	Die-cast aluminum housing
Weight	0.8 pounds (365 grams)
Dimensions	6.6" L x 2.4" W x 1.8" H (167mm x 61mm x 45.7)
Warranty	1 year
